Astell & Kern SA700 review

SA700 components and specifications



[responsivevoice_button]



The SA700 has some impressive horsepower under the hood. Power-wise, it’s capable of  2.0Vrms from its 3.5mm single-ended connection, and 4.0Vrms from its 2.5mm balanced jack. Its Android-based operating system features a quad-core processor, and digital to analogue conversion duties are managed by a pair of AK4492ECB DACS from AKM. Just about every file type you should worry about can be played via the SA700 (including some controversial proprietary ones if that’s your thing), and it will happily dispatch very hi-res music well above the classic 16/44.1 Redbook sample rate. In terms of connectivity, there’s the SA700’s aforementioned Wi-Fi which uses the 2.4GHz band, and it also has Bluetooth v4.2 and is capable of aptXTM HD transmission.

The manufacturer’s specifications are as follows:

  • Supported Audio Formats: WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA
  • MQA playback: Services(Tidal Masters), Local files, External USB, MQA-CD(ripped)
  • Sample rate: PCM : 8kHz ~ 384kHz (8/16/24/32bits per Sample) / DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo
  • Body Material – Stainless Steel
  • Display – 4.1inch (720 x 1,280) Touch display
  • Input – USB Type-C input (for PC & MAC)
  • Outputs – Unbalanced Out (3.5mm) / Balanced Out (2.5mm, only 4-pole supported)
  • Wi-Fi – 802.11 b/g/n (2.4GHz)
  • Bluetooth – V4.2 (A2DP, AVRCP, aptXTM HD)
  • Dimensions – 2.32 ”(59.1 mm) [W] x 4.56 ”(115.9 mm) [H] x 0.64 ”(16.5 mm) [D]
  • Weight – 10.68 oz (303 g)
  • Feature Enhancements – Firmware upgrades supported (OTA)
  • Frequency Response – ±0.24dB (Condition: 20Hz~20kHz) Unbalanced / ±0.24dB (Condition: 20Hz~20kHz) Balanced ±1.95dB (Condition: 20Hz~70kHz) Unbalanced / ±1.94dB (Condition: 20Hz~70kHz) Balanced
  • Signal to Noise Ratio – 120dB @ 1kHz, Unbalanced / 123dB @ 1kHz, Balanced
  • Crosstalk -134dB @ 1kHz, Unbalanced / -138dB @ 1kHz, Balanced
  • THD+N – 0.0006% @ 1kHz, Unbalanced / 0.0006% @ 1kHz, Balanced
  • IMD SMPTE – 0.0003% 800Hz 10kHz(4:1) Unbalanced / 0.0004% 800Hz 10kHz(4:1) Balanced
  • Output Impedance – Unbalanced Out 3.5mm (1.8ohm) / Balanced out 2.5mm (1.9ohm)
  • Clock source – Reference Clock Jitter 70ps(Typ)
  • Battery Capacity 3,150mAh 3.7V Li-Polymer Battery
  • Continuous Playback Time – Up to 8.5 hours (Standard – MUSIC: FLAC, 16-bit/44.1kHz, Unbalanced, Volume 80, EQ OFF, LCD OFF)
  • Charge Time – About 4.5 hours (Standard – 5V/2A Charging)
  • Built-in Memory – 128GB [NAND]
  • External Memory – microSD (Max. 1TB) x1
  • Supported OS – Windows 7,8,10 (32/64bit), MAC OS X 10.7 and up

On paper, the SA700 is a very, very capable small device but it’s also a reasonably expensive one – $1,299 can buy you quite a lot of desktop DAC/amplifier, and let’s face it – desktop listening has never felt like a more inviting prospect than it does now. So, at this price is the SA700 good value? Does it manage to combine form, function and of course performance? And for our readers, is it worth picking up for both home and away duties (well, when we’re let back out, anyway)?





Packaging and presentation

Hats-off to Astell&Kern for providing one of the most premium packaging and unboxing experiences around. The SA700 certainly feels like a $1,299 device in terms of the ceremonious way that it’s revealed in a display plinth, that wouldn’t look unwelcome holding a Fabergé egg. A screen-protector bearing the maker’s mark and an ‘Ultimate High Fidelity Sound System’ message is a nice touch. As well as the device itself, the SA700 ships with a USB-C charging and data cable, two sets of screen protector/player protector film, a user guide, and a warranty card.

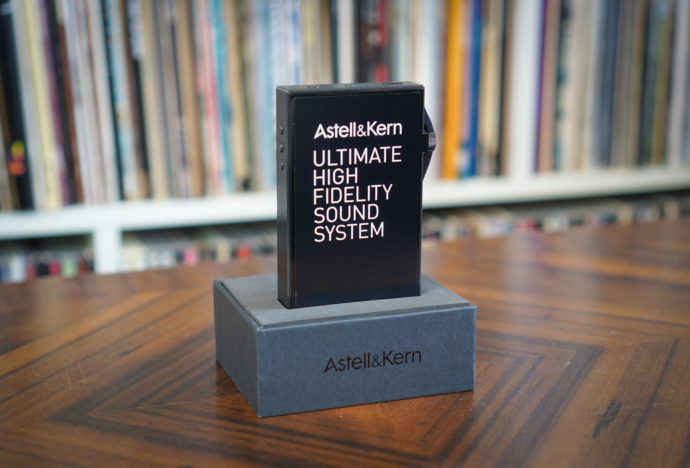

Astell&Kern SA700

The SA700 is also available with an optional $169 protective case in three different colour schemes: Poppy Red, Viridian Green, and as featured in this review unit: Neo Black. The skeletonised pattern on the rear continues the visual theme established in the volume wheel, which is apparently inspired by a string bridge (well there you go). It also allows for heat dissipation, which as I found out is kinda necessary as the SA700 does like to get a little toasty from time to time during playback.

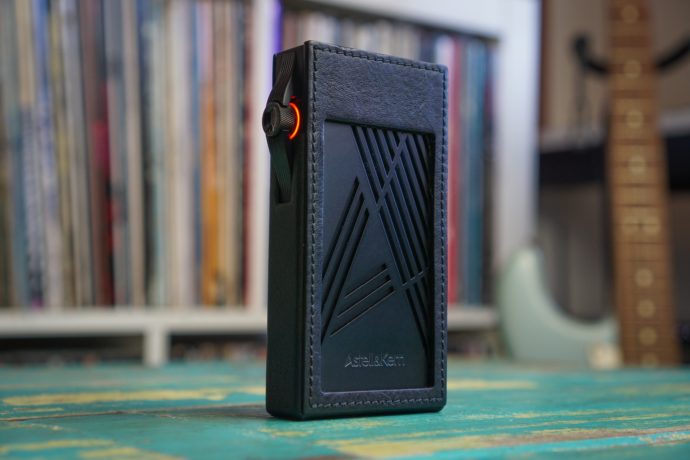

SA700 with optional Neo Black protective case

Design and build

The SA700 is constructed from Stainless Steel, which rare for a portable device but chosen in this instance for its corrosion-resistant properties and its strength. This choice has resulted in a device that has some noticeable heft about it – 303 gram’s worth of heft, to be precise. When you lift it up you know you’re holding something expensive – the combination of its weight, precision machining and restrained industrial design gives the SA700 the satisfying feeling of a luxurious performance machine. I’m also pretty confident that you could use it to smash-open a plate-glass window in a pinch. It’s that solid.

The SA700’s weight and size, however, does push the limits of what you might consider to be ‘pocketable’. Under normal street conditions, it would be a squeeze to fit into the front pocket of some snug-fitting jeans, but that’s not really a problem right now…right? Given that track-pants are the new-norm for business wear right now in the work-from-home world, hilariously I found that the heft of the SA700 tends to want to make them fall down around your ankles. Not great for video calls with colleagues.

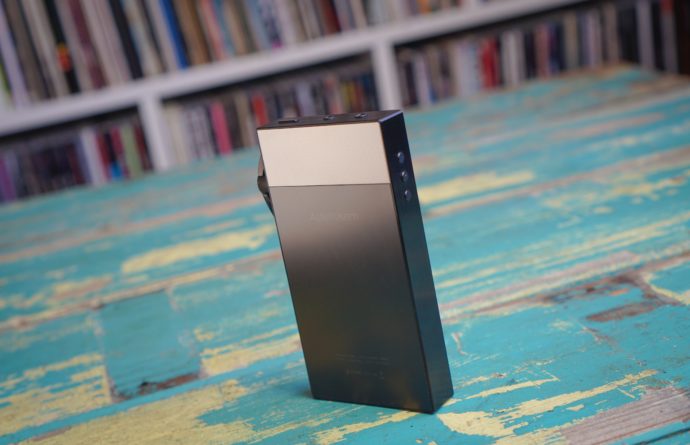

Astell&Kern Kern SA700

Astell&Kern Kern SA700

Jokes aside though, the 4.1-inch touch-screen and button layout have been designed with one-handed operation in mind, and I can report that the SA700 is a joy to hold and operate. The knurled volume wheel is tactile, precise and has just about the right level of ‘clickiness’ – it’s a winner. The playback buttons on the left-hand side, however, are definitely on the subtle side. I have found myself accidentally fast-forwarding/rewinding when I wanted to press ‘pause’ more than once due to their size. This is exacerbated further when the SA700 is in its protective case, which makes the shape of the buttons even more indeterminate. This would make in-pocket playback control a bit of a game of guesswork. It must also be noted that the grippy pattern on the volume-wheel does like to grip on fabric when moved, so you might experience some unexperienced volume-changes from time-to-time. However, there is the option to lock the wheel while the screen is off via the SA700’s settings.

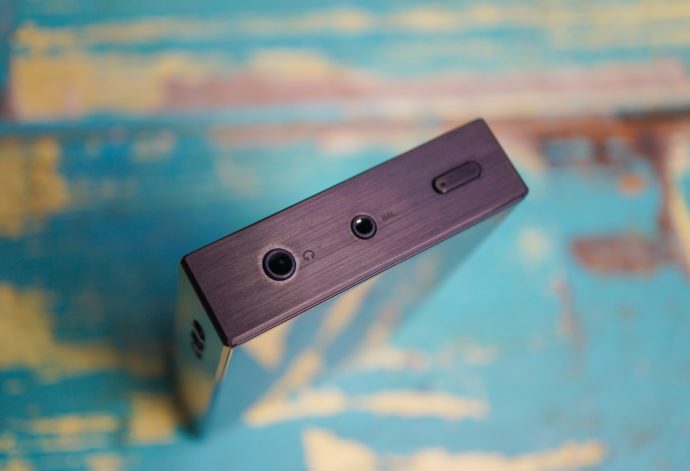

3.5mm and 2.5mm headphone-out

Both 3.5 and 2.5mm headphone/line-out jacks are accessed on the top of the device, along with the SA700’s power button. Power and data are fed to the SA700 via a USB-C port on the bottom of the device, next door to a sliding ‘trapdoor’ that your external Micro-SD card slots into.

User Experience and Connectivity

First up, I gave the SA700 a good charge out of the box – Astell&Kern recommend 4.5 hours for a full charge for the 3,150mAh 3.7V Li-Polymer Battery, which they claim will deliver around 8.5 hour’s worth of playback. Next, I fired-up the device which treats you with a very premium and serious-looking red ‘Astell&Kern’ logo on the inky black screen. It looks the business. After hooking-up to my 2.4GHz home wifi network, I was immediately prompted to give the SA700 a firmware update, after which I popped-in a 400gb Micro-SD card, and we were in business.

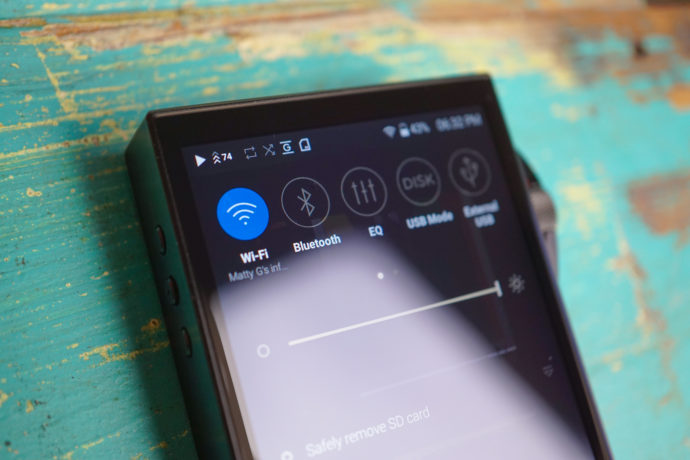

Astell&Kern SA700

The user interface is fairly intuitive and requires only a cursory learning-curve to work out how to navigate between the device’s settings and your music library by song, artist, genre and folder. Playlist creation is pretty straight-forward, although I tend to only play albums. Being an Android user I felt right at home immediately. Scrolling and tapping is smooth and lag-free, and images and font are rendered in crisp high-definition – it’s a good-looking screen and also feels good under the thumb.

I must point out that the ‘keyboard’ that pops-up when prompting wifi passwords and for searching within streaming apps is hilariously small, and I guarantee you’ll succumb to ‘fat thumbs’ syndrome more than once. However, that aside it’s an overall easy to live-with interface and gets you into your music quickly.

Tidal connectivity

Once up and running on wifi I jumped into my Tidal account and was pleased to find quick and easy access to all my saved artists, albums and playlists with just a couple of swipes. Music discovery and browsing is reasonably easy, although I must note that installation of an APK is required if you’d like to download music for offline playback. Navigation does become a little confusing when listening via Tidal – tapping the ‘home’ button takes you into the SA700’s offline player rather than Tidal, meaning you have to navigate back through the menu to control what you’re playing via Tidal.

Deezer and Tidal streaming apps

Line-out and DAC-mode

If you’re planning on using your DAP as your primary source for two-channel listening or for feeding an external amp, it’s a simple case of selecting ‘Line out’ mode which sets the SA700’s output to a fixed 2 Volts. The SA700 also includes a ‘car mode’ which adapts the screen to a more appropriate layout to avoid distractions.

The SA700 operating as a USB-DAC via Roon

The SA700 is also able to function as a USB-DAC, making it possible to take full advantage of that pair of AK4492ECB DAC chips in between a computer/mobile source and your amplifier of choice. Hitching the SA700 to my Macbook, Roon found the SA700 as an audio ‘zone’ quickly and I was able to play over the device from both the native files on my laptop as well as Tidal.

EQ adjustment

The SA700 has a fairly comprehensive EQ adjustment system, allowing for a number of user profiles to be created. Precise tweaking of peaks/troughs for individual frequency bands is controlled via an array of ‘sliders’ that I found to be infuriatingly difficult to accurately given how small they are. Parametric-style equalisation can also be deployed using a more friendly ‘graph’-style system which also allows the user to set the Q-value for each band.

Astell&Kern Kern SA700

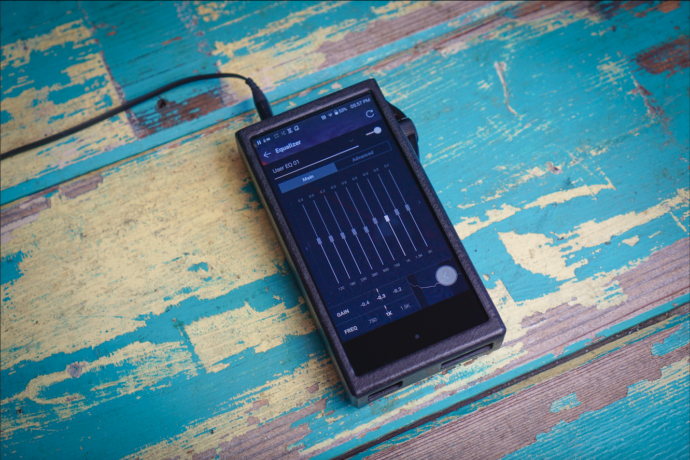

SA700’s adjustable equaliser settings

Bluetooth

The SA700’s AptX-HD Bluetooth setting is a ‘nice to have’ feature for the would-be ‘do-all’ source and provided yet another way to keep my music keeping-on around the place. I found pairing with my NAD D3020 receiver and Audeze Mobius to be an unremarkably simple affair, and playback sounded more than acceptably transparent for causal listening around the house.

As well as looking terrific, so far the SA700 has proven itself to be rather clever in terms of working in just about every conceivable digital application, but that’s all for nought if it doesn’t have it where it counts – let’s see how it sounds.

Head over to Page Three for more, just CLICK HERE.
