Specifications
For the nit-picker and nerdy one here, I’m giving the specs and technical sheets . For all the other, you can just go to the next page to see how the amp performs.
DAC

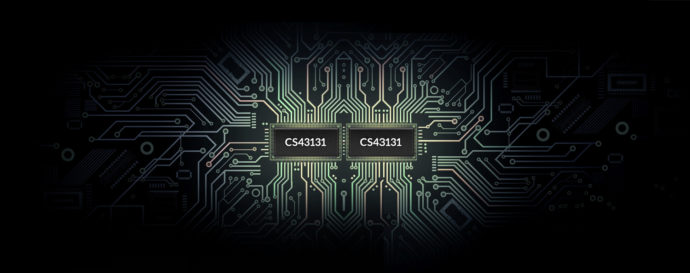

At the heart of the Cowon Plenue D2, you have a set of two Cirrus Logic CS43131 DAC. Issued from the MasterHifi line from Cirrus, those chips integrates the DAC and the headphone amplifier on the same IC. This gives the DAP one of the best power-efficient circuit at the moment, which might explain why the D2 can live up to 30h in HD playback.
Mounted in dual-mono, the dual CS43131 system boast impressive numbers, even if you compare them to higher tier player :

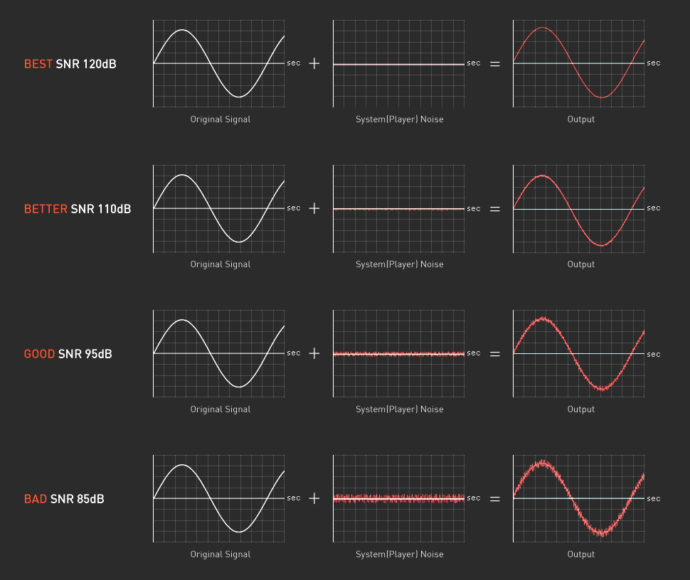

– 130dB of Signal To Noise Ratio. This is a studio level measurement, so you should never, ever heard noise at any given volume.
– 0.0004% of Total Harmonic Distorsion. This value indicates the Plenue D2 can deliver high voltages without any distortion, interesting if you plan to use power-hungry headphones.
– 143dB stereo crosstalk. Ok, this is one of the best number I ever seen. This means there is no leakage from left to right or right to left channel, in any condition, ever.
Those are astounding numbers and if we feed the Cowon Plenue D2 with High-Definition files, you should enjoy every last bits.
Premium Sound DAC Filter
I don’t look much into DAC filter usually. It’s one of those settings that I don’t find really relevant in a real world usage, yet the Plenue D2 got me triggered for one option : non-oversampling.
You have five digital filters :
– Fast/low-latency
– Fast/Phase-comp,
– Slow/Low-Latency
– Slow/Phase-comp
– Non-Oversampling
I didn’t hear a big difference between the four first settings, even with DSD files. The Non-Oversampling was the only one I could sense a difference with during my tests. Voices were softer if not duller and I ended up, leaving the Plenue D2 in this mode for good. It’s not night and day, but it’s not uninteresting by any means.
Full specs
- Type : Digital Audio Player- OS : Cowon OS – Matrix Browser
- CPU : dual-core ARM
- Rom :64Gb
- DAC : 2x Cirrus-Logic CS43131
- Sample rate : PCM : 8Hz – 384kHz (8/16/24) native – DSD64/128 – 32bits WAV
- Outputs : 3.5mm headphone out / 2.5mm TRRS out - Input : micro-USB
- Screen : 2.8″ 2430×320 IPS Screen
- Micro SD : SDHC / SDXC (single slot)
- Battery life : 45h with MP3 playback / 30h with HD playback
- Charging time : around 2h with a 2Ah/5V charger
- Size : 53.1mm*79.2mm*14.9mm
- Weight : 97g
JetEffect 5
- 48 Presets (44 presets + 4 User Presets)
- EQ 5 Band Equalizer
- BBE, Mach3Bass, 3D Surround, MP Enhance
- Reverb 9 modes
3.5 mm Headphone out
- Output power : 2Vrms
- Frequency Response : 10Hz – 40kHz
- THD : 0.0004%
- SNR : 125dB
- Crosstalk : – 120 dB
- Output impedance : 1 ohms
2.5 mm Headphone out
- Output power : 4Vrms
- Frequency Response : 10Hz – 40kHz
- THD : 0.0005%
- SNR: 130dB
- Crosstalk : – 143 dB
- Output impedance : 1.5 ohms
The review continues on Page five, after the click HERE or by using the jump below.
